Comparing fitted and test-batch tangent-space references

Riemannian tangent-space projection maps symmetric positive-definite covariance matrices to vectors around a reference matrix [1], [2]. With pyriemann.tangentspace.TangentSpace, tsupdate=False estimates that reference during fit and reuses it during transform. By contrast, tsupdate=True estimates a reference from all matrices passed to each transform call.

The updated setting does not use evaluation labels, but it is transductive: each prediction depends on the other samples in the same evaluation batch. Its output can therefore depend on batch size and composition, and pyRiemann documents it as incompatible with online use. This example reports both settings for four subjects from one public motor-imagery dataset under MOABB’s within-session and cross-session protocols. It is an illustration, not a benchmark or evidence that either reference policy is generally better.

Note

This example changes only the reference used by the tangent-space projection. It is distinct from moabb.datasets.preprocessing.EuclideanAlignment, which whitens raw trials before covariance estimation, and from domain-aware transfer estimators such as pyriemann.transfer.TLCenter.

# Authors: Meysam Rahimipour <rahimipour.2110739@studenti.uniroma1.it>
#
# License: BSD (3-clause)

import matplotlib.pyplot as plt
import mne
import numpy as np
from pyriemann.estimation import Covariances
from pyriemann.tangentspace import TangentSpace
from sklearn.linear_model import LogisticRegression
from sklearn.pipeline import make_pipeline

import moabb
from moabb.datasets import BNCI2014_001
from moabb.evaluations import CrossSessionEvaluation, WithinSessionEvaluation
from moabb.paradigms import LeftRightImagery


moabb.set_log_level("info")
mne.set_log_level("WARNING")  # keep the gallery output readable

Build the two pipelines

Both pipelines are identical except for whether the tangent-space reference comes from the evaluation batch or the fitted training data. Holding the covariance estimator and classifier fixed makes that policy the only pipeline difference in this illustrative run.

def make_ts_pipeline(tsupdate):
    """Build a tangent-space pipeline with a fitted or updated reference."""
    return make_pipeline(
        Covariances(estimator="oas"),
        TangentSpace(metric="riemann", tsupdate=tsupdate),
        LogisticRegression(max_iter=1000, C=1.0),
    )


pipelines = {
    "Updated test-batch reference": make_ts_pipeline(tsupdate=True),
    "Frozen training reference": make_ts_pipeline(tsupdate=False),
}

Cross-session evaluation

CrossSessionEvaluation trains on one session and tests on another using MOABB’s leave-one-session-out protocol. We record the observed scores without prespecifying which reference policy should win.

dataset = BNCI2014_001()
dataset.subject_list = dataset.subject_list[:4]  # keep the example fast
paradigm = LeftRightImagery(fmin=8, fmax=32)

cross_session_eval = CrossSessionEvaluation(
    paradigm=paradigm,
    datasets=[dataset],
    suffix="geometry_aware",
    overwrite=True,
    random_state=42,
)
cross_results = cross_session_eval.process(pipelines)

Within-session evaluation

WithinSessionEvaluation trains and tests within each recording session. This supplies a second evaluation context for the same two pipeline settings; it is not a no-shift control condition.

within_session_eval = WithinSessionEvaluation(
    paradigm=paradigm,
    datasets=[dataset],
    suffix="geometry_aware",
    overwrite=True,
    random_state=42,
)
within_results = within_session_eval.process(pipelines)

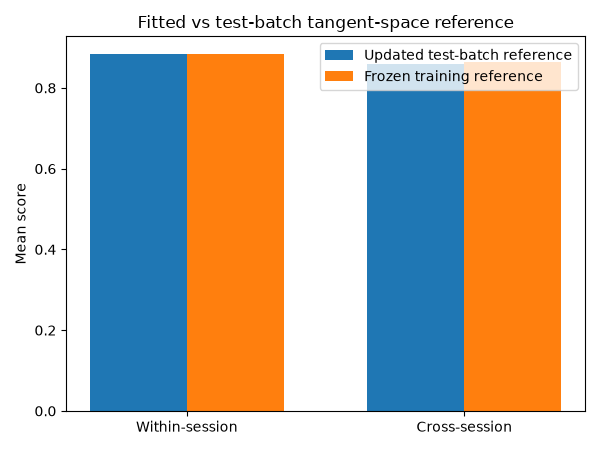

Observed scores

Plot the mean score per pipeline in both protocols side by side. These means summarize this four-subject run only; no inferential statistic is computed.

cross_means = cross_results.groupby("pipeline")["score"].mean()
within_means = within_results.groupby("pipeline")["score"].mean()

fig, ax = plt.subplots(figsize=(6, 4.5))
x = np.arange(2)
width = 0.35
names = list(pipelines.keys())
for i, name in enumerate(names):
    vals = [within_means[name], cross_means[name]]
    ax.bar(x + i * width, vals, width, label=name)
ax.set_xticks(x + width / 2)
ax.set_xticklabels(["Within-session", "Cross-session"])
ax.set_ylabel("Mean score")
ax.set_title("Fitted vs test-batch tangent-space reference")
ax.legend()
fig.tight_layout()
plt.show()

print("Within-session means:\n", within_means)
print("\nCross-session means:\n", cross_means)

Within-session means:
 pipeline
Frozen training reference       0.883605
Updated test-batch reference    0.882985
Name: score, dtype: float32

Cross-session means:
 pipeline
Frozen training reference       0.863378
Updated test-batch reference    0.860123
Name: score, dtype: float32

Choosing a reference policy

The policy is controlled by one argument:

from pyriemann.estimation import Covariances
from pyriemann.tangentspace import TangentSpace
from sklearn.linear_model import LogisticRegression
from sklearn.pipeline import make_pipeline

pipelines = {
    "Updated test-batch reference": make_pipeline(
        Covariances(estimator="oas"),
        TangentSpace(metric="riemann", tsupdate=True),
        LogisticRegression(max_iter=1000),
    ),
    "Frozen training reference": make_pipeline(
        Covariances(estimator="oas"),
        TangentSpace(metric="riemann", tsupdate=False),
        LogisticRegression(max_iter=1000),
    ),
}

Use tsupdate=True only when transductive access to the complete prediction batch matches the intended deployment and evaluation contract. Use tsupdate=False when predictions must depend only on fitted training state, including online or independently processed samples. The evaluation class alone does not determine that choice.

References

[1]

A. Barachant, S. Bonnet, M. Congedo, and C. Jutten. Multiclass Brain-Computer Interface Classification by Riemannian Geometry. IEEE Transactions on Biomedical Engineering, 59(4):920-928, 2012. doi:10.1109/TBME.2011.2172210.

[2]

A. Barachant, S. Bonnet, M. Congedo, and C. Jutten. Classification of covariance matrices using a Riemannian-based kernel for BCI applications. Neurocomputing, 112:172-178, 2013. doi:10.1016/j.neucom.2012.12.039.
